User-friendly handling

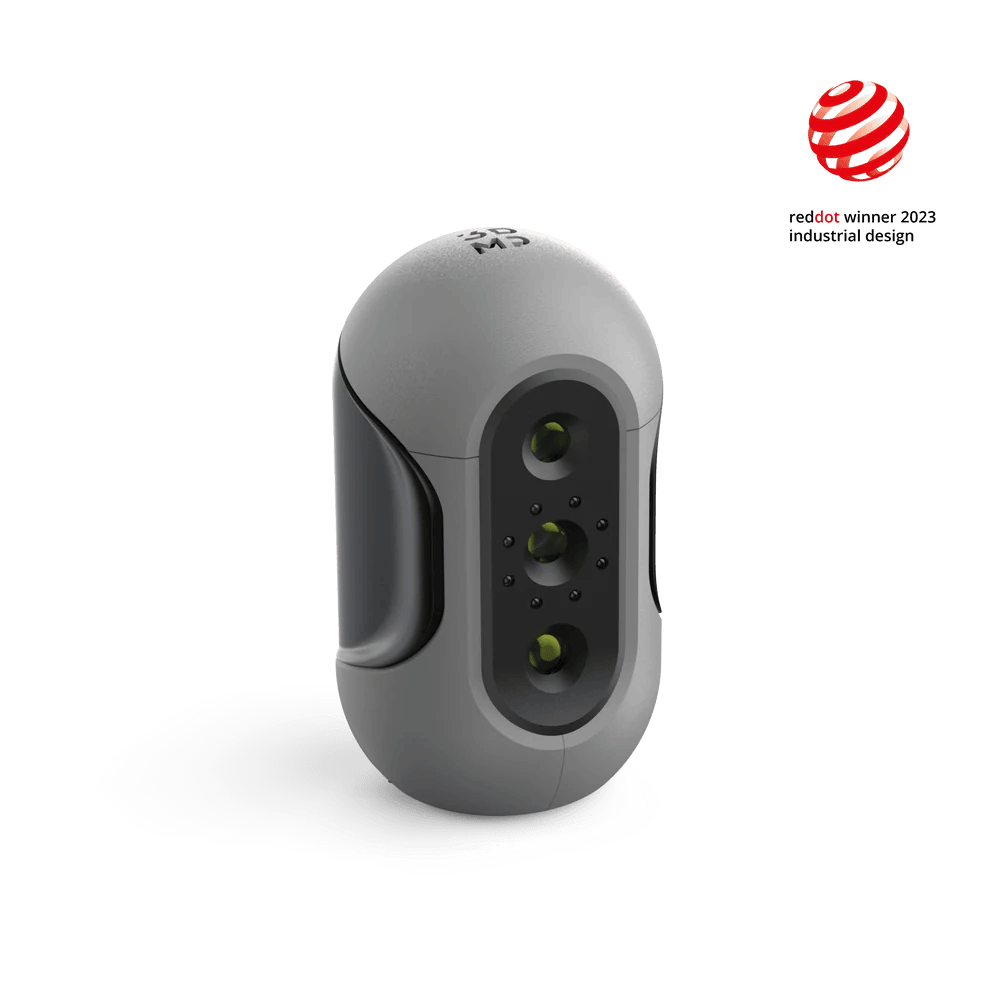

The compact Mole 3D scanner features an ergonomic design that is perfect for both handheld and turntable modes. The scanner is equipped with internal quiet fans to reduce the temperature for a longer operating time.
High precision, resolution and scanning speed in one
Mole is equipped with high-resolution scanning lenses that capture medium-sized objects with an incredible accuracy of 0.05 mm and a resolution of 0.1 mm. The high-precision 3D scanner has a recording area of 200 x 100 mm and captures even the finest details at a scanning speed of up to 10 images/sec.
Features for the best scanning results
► The NIR light source allows Mole to easily capture the texture as well as black and coloured objects. The colour mode is only compatible with the Mole-Luxury kit.
► Visual tracking and self-developed AI algorithms enable fast scanning without markers.
► Optical anti-shake modules allow stable scanning with high frame rates and minimal distortion.
Optional accessories: 3DMakerpro Connect
With these optional accessories, you can use Mole on the go! Connect connects the Mole, the tripod, your smartphone and the power supply together and ensures stable scanning - no matter where you are!
♦ Attention: Connect requires a power bank with a 12V PD 22.5W Type C interface.
JMStudio
JMStudio is 3DMakerpro's exclusive software that converts captured scan data into 3D models. The user-friendly software supports standard output formats such as OBJ, STL and PLY, and is compatible with popular professional software:
The JMStudio software is compatible with macOS and Windows. You can download the software here.
By clicking on this link you will find tutorials, user guides and other useful information about the Mole 3D scanner.
There are three different Mole variants to choose from: Mole Standard, Mole Premium and Mole Luxury. Each of the included equipment – in addition to the mole scanner itself – is adapted to different requirements.
Included in delivery of the Mole standard:
- 1 x Mole 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
Included in delivery of the Mole Premium:
- 1 x Mole 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
- 1 x tripod
- 1 x Turntable Kit
Included in delivery of the Mole-Luxury:
- 1 x Mole 3D Scanner
- 1 x Power Cord
- 1 x Data Cable
- 1 x tripod
- 1 x Turntable Kit
- 1 x Colour Kit
Technical data:
| Dimensions |
141x80x80mm |
| Weight |
390g |
| Accuracy |
0.05mm |
| Resolution |
0.1mm |
| Frame rate |
10 frames/sec. |
| Tracking mode |
visual tracking |
| Working distance |
150-400mm |
| Individual detection area |
200x100mm |
| Typical object size |
15-1500mm |
| Light source |
NIR |
| Colour texture |
extended support |
| USB interface |
USB2.0 |
| Output format |
OBJ, STL, PLY |
| Compatible system |
Windows 10/11 64bit
MacOS12/13 |
| Minimum computer requirements |
Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM |
| Recommended computer requirements |
Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM |
